60W 92W 117W Modular LED Tunnel Light Fixtures

Click to view original image
Available Wattages: 60W/92W/117W
Lumen Output: 4810 - 12410 lumens
Light Source: Cree/Osram LEDs
Unit Price: Request a quote
Origin: China
Last Updated: 2018-02-28 21:27
Views: 329
Send inquiry
Company Information
Located in Huzhou, China, Jingri Lighting is an industry-leading designer and manufacturer of architectural, landscape and roadway luminaires with a focus on the advancement of LED technology and digital lighting control. Our products are employed... [more]


Product Details
  • Power: 60W/92W/117W
  • Input Voltage: AC 100~277V
  • Frequency: 50/60 Hz
  • LED: Cree/Osram
  • Luminous Flux: 4810 - 12410 lumens
  • Color Temperature (CCT): 3000K/4000K/6500K
  • Color Rendering Index (CRI): ≥70
  • Lumen Maintenance: L70>70,000 hours
  • LED Driver: Mean Well/Inventronics
  • Power Factor: >0.90
  • Operating Temperature: -35°C ~ 50°C (-31°F ~ 122°F)
  • Applicable Environment Humidity: 10%~90% RH
  • Ingress Protection: IP66
  • Certifications: CE, CQC, RoHS
  • Warranty: 5 years
The JRE3 series LED tunnel light fixtures are developed to replace traditional high-pressure sodium lamp and metal halide tunnel fixtures for various retrofit and new construction applications. The luminaire is constructed of a one-piece cast, low-copper die-cast aluminum alloy with a sleek contemporary design. The wet location rated construction is designed with IP65 rated electrical and optical chambers which are completely seale against water, dirt and debris in harsh outdoor environments. A unique thermal management design promotess an effecient air-flow for optimal heat dissopation. High flux light engines feature incredible efficiency and  provide L70 lifetime over 50,000 hours of life based on IES TM-21 without sacrificing operational performance. The patented optical design minimizes glare and provides high uniformity and improved vertical light distribution. The high power factor (PF >90% @ 120-240V), low total harmonic distortion (THD <15% @ 120-240V) constant current LED driver features built-in OVP, OCP, SCP, and OTP protection circuitry. Fade and abrasion resistant polyester powder coat finish provides excellent resistance to corrosion, ultraviolet degradation and abrasion. Available in 60W, 92W and 117W, these lights have correlated color temperature (CCT) of 3000K (WW), 4000K (NW), or 6500K (CW) and 70 CRI minimum.

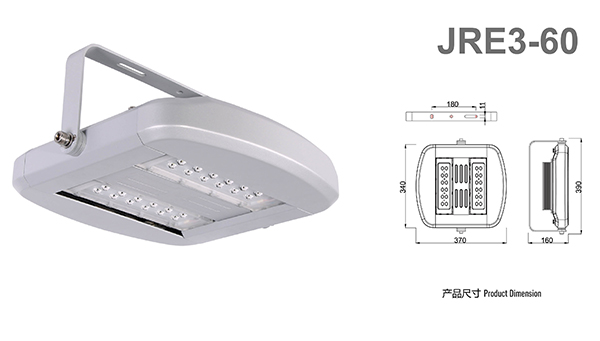

jre3-led-tunnel-light-60w

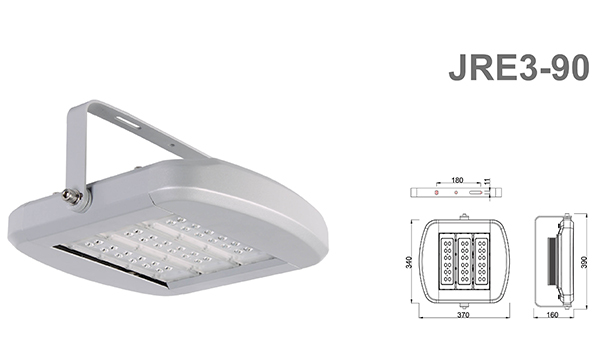

jre3-led-tunnel-light-90w

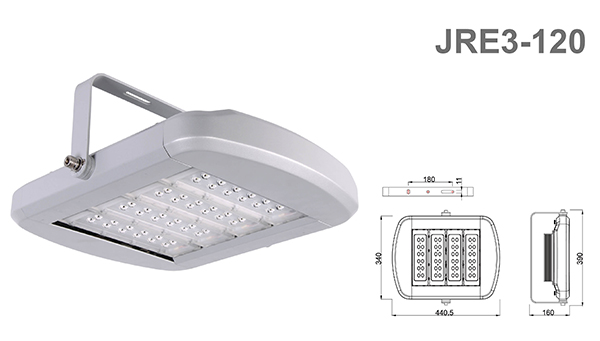

jre3-led-tunnel-light-120w
