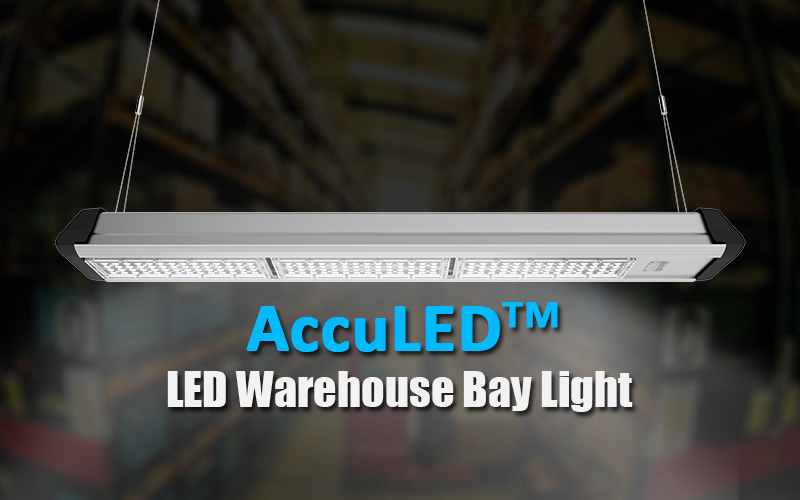

200W Linear LED High Bay Warehouse Lighting Fixture

Click to view original image
Power Range: 50W/100W/150W/200W/240W/300W
Light Source: Osram / Lumileds
Luminous Efficacy: 130 lm/W min.
Unit Price: Request a quote
Origin: China
Last Updated: 2017-11-14 00:12
Views: 100
Send inquiry
Company Information
E-Lite Semiconductor, Inc. specializes in specification grade LED luminaires for industrial and outdoor applications. The company offers a cutting edge range of performance engineered high power lighting products, including LED high bay lights, LE... [more]


Product Details
  • Power: 200 W
  • Input Voltage: 100-277 VAC (347/480 VAC Optional)
  • Light Source: Osram / Lumileds
  • Luminous Efficacy: 130 lm/W min.
  • Luminous Flux: 26000 lm
  • Color Rendering Index: Ra 70 min.
  • Color Temperature: 4500~5500K (2500~5500K Optional)
  • Lumen Maintenance (L70): 70,000 hours
  • Light Distribution: 30/100°, 60/100°,70/135°, 60/150°, 73/133°,90°,110°,150°
  • LED Driver: Mean Well/Inventronics/Sosen
  • Power Factor: 0.95 min.
  • Ingress Protection: IP65
  • Operating Temperature: -30 to 45°C (-22 to 113°F)
  • Humidity: 15% to 95% RH
  • Mounting Options: Chain Mount, Surface Mount
  • Certification: ETL, CE, RoHS, CB, WEEE, DLC 4.0 Standard
  • Warranty: 5 Years
E-Lite Nastro linear LED high bay lights are designed to provide high quality lighting for open floor or racked aisles in industrial and commercial buildings. The high output LED fixture is specifically configured to deliver high lumen packages with precise optical control for warehouses. Highly efficient Osram/Lumileds LEDs with an industry-leading system efficacy of 130 lumens per watt delivers unmatched performance with the enhanced benefits of LED lighting, including substantial energy savings, extended system life, and maintenance-free operation. High efficiency reflective optic systems provide exceptional vertical illuminance and uniformity with minimal glare. Multiple symmetric or asymmetric distribution are available for a more targeted distribution while maximizing efficiency and application spacing. The rugged die cast aluminum housing holds the LED light engines securely with superior thermal management that facilitates heat dissipation to ensure extended LED life with minimal lumen depreciation. With embedded sensors and controls, these fixtures form an integrated illumination system which is highly responsive to the ambient light level, thereby maximizing energy savings as well as providing control and flexibility.
