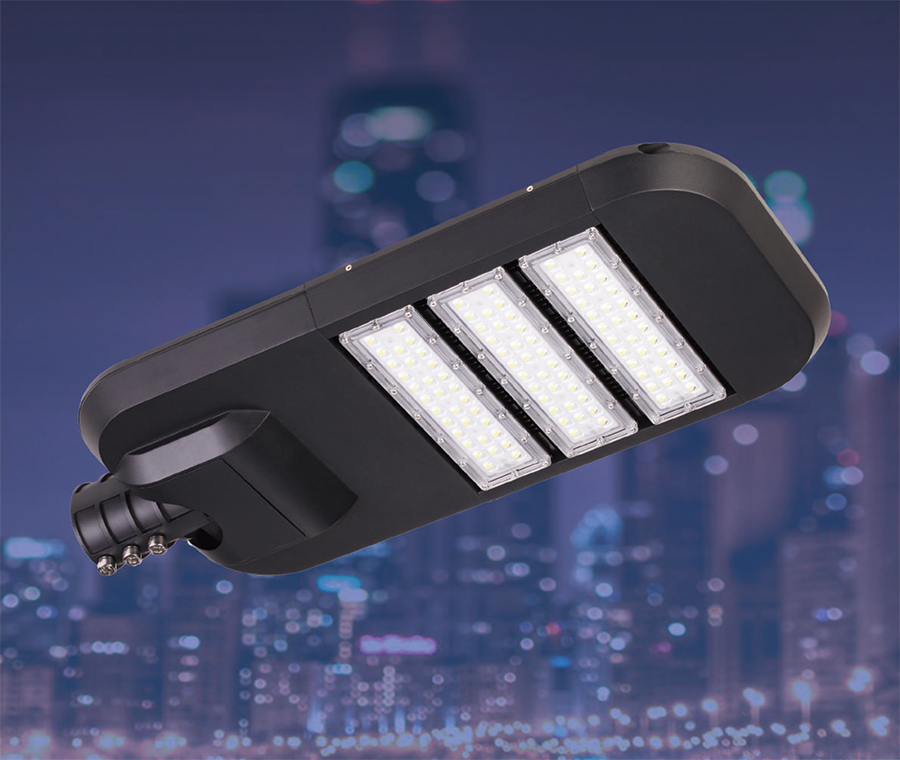

UL DLC CB GS SAA 170 lm/W LED Roadway/Street Lights (40W - 280W)

Click to view original image
Available Wattages: 40W/80W/120W/160W/200W/240W/280W
Luminous Flux: 6800/13600/20400/27200/34000/40800/47600 lm
Light Source: Lumileds LUXEON 5050 LEDs
Unit Price: Request a quote
Origin: China
Last Updated: 2017-12-18 08:51
Views: 56
Send inquiry
Company Information
AOK Lighting develops and manufactures industrial and outdoor lighting fixtures, including LED high bay lights, LED street lights, LED area lights, LED flood lights, LED tunnel lights and LED gas station lights. The company delivers innovative des... [more]
Product Details
  • Power: 40W/80W/120W/160W/200W/240W/280W
  • Input Voltage: 100-277 VAC (347/480 VAC optional)
  • Utility Frequency: 50/60 Hz
  • Light Source: Lumileds LUXEON 5050
  • Luminous Efficacy: 170 lm/W
  • Luminous Flux: 6800/13600/20400/27200/34000/40800/47600 lm
  • Color Rendering Index (CRI): ≥70 (≥80 optional)
  • Color Temperature (CCT): 3000-6500K
  • Lumen Maintenance: L70>50,000 hours
  • Light Distribution: Type II, Type III
  • LED Driver: Mean Well
  • Power Factor: >0.95
  • Total Harmonic Distortion (THD): <15%
  • Driver Protections: Short circuit / Over current / Over voltage / Over temperature
  • Dimming: 3 in 1 (1~10Vdc, 10V PWM signal and resistance)
  • Lighting Control: Twist-lock/plug-in lock photocell
  • Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
  • Ingress Protection Rating: IP66
  • Impact Protection Rating: IK10
  • Certification: UL, DLC, CB, GS, FCC, SAA, RCM, CE, RoHS
  • Warranty: 5 Years
The AOK iL Series LED street lights provide industry-leading application efficiency and adjustable output for versatility in an extensive range of street and roadway lighting applications. This line of products is designed to economically meet the higher energy code and illumination performance requirements of freeways, expressways, major and local roads. Modular design accommodates up to 7 LED light engines and produces an output equivalent to that of a 1000W HID street light while consuming a significant fraction of energy and providing remarkably extended trouble-free operation. Multiple lumen packages and light distributions (Type 3, Type 4, Type 5) allow these products to be used in any roadway lighting and compound lighting application. AOK iL Series LED street lights feature an exceptional the electrical/optical conversion efficiency. The high output and high efficacy Lumileds LUXEON 5050 LED technology paired with high efficiency TIR optics generates an outstanding system luminous efficacy of 170 lm/W. Inventronics/Mean Well LED drivers with PFC circuit and overall protection schemes ensure that the LED system efficiency is maintained at a high level. The excellent thermal management through a specifically engineered heat sink enables better air convection, heat dissipation and dust resistance and offers a wide operating temperature range of -40°C to +50°C. Sophisticated system design contributes to better lumen output and accurate color temperature of the LED engines and provides a verified lumen maintenance of 75.11% at 50,000 hours (the TM-21-11 L70 life is greater than 60,000 hours). AOK iL Series LED street lights come standard with an interface for the NEMA photoelectric control unit (PECU), providing the ability for dusk-to-dawn control and network connectivity when smart lighting modules are integrated. To ensure the highest possible levels of safety and reliability, the AOK iM Series products are manufactured to the applicable code and regulatory compliance standards, including UL, CE, CB, FCC, TUV-GS. These products are also DLC listed, making them qualified for utility rebates in the U.S. market.
