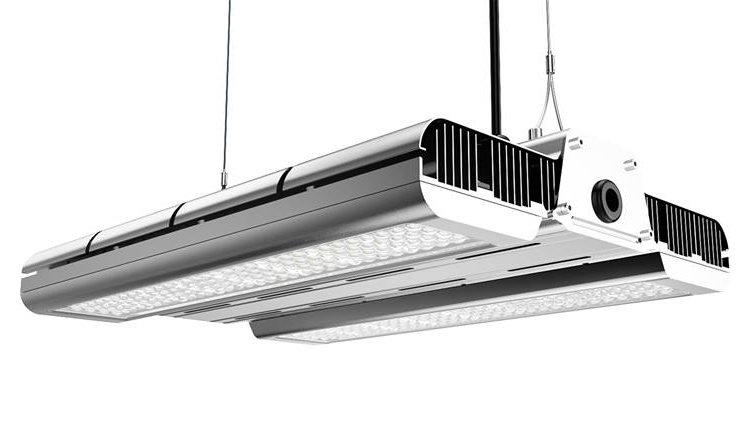

150W LED High Bay Warehouse Light Fixture

Click to view original image
Unit Price: Request a quote
Term: Ex-works
Origin: China
Last Updated: 2020-09-05 10:31
Views: 456
Send inquiry
Company Information
Feiert Technology designs, engineers and manufactures LED high bay lights, LED flood lights, LED street lights and LED tunnel lights. Since 2008 the company has been serving the industrial and outdoor lighting market with distinct specification gr... [more]
Product Details
  • System Power Consumption: 155W
  • LED Power Consumption: 140W
  • Input Voltage: AC90-260V
  • Frequency Range: 50Hz-60Hz
  • LEDs: Nichia/256 PCS
  • Luminous Efficacy: 110-120 lm/W
  • Luminous Flux: 17050-18600 lm
  • Power Factor: 0.95 min.
  • Total Harmonic Distortion: 9% max.
  • Average Illuminance (6m): 189 Lux
  • Illuminance Area (6m): 8.7X29M
  • Illuminance Uniformity: 0.7 min.
  • Color Rendering Index: Ra 80 min.
  • Color Temperature: 4000K/5000K/5700K/6500K
  • Light Distribution: Symmetrical/Round Beam
  • Driver: Meanwell
  • Working Temperature: -30℃~+55℃
  • Ingress Protection: IP65
  • Certification: UL, TUV, GS, CE
  • Warranty: 3 years
The HB160-150W high bay LED light delivers precise light distribution and uniform illuminance for 6-10m mounting heights and applications where long life, low maintenance, and consistent high quality light output are required. The high performance luminaire uses 256 discrete Nichia LED chips paired with a precision designed optic positioned over each LEDs. The high efficacy LEDs are bundled together to collectively produce 18,600 lumens, with a system efficacy of 110-120 lumens per watt, offering greater than 75 percent in energy and maintenance savings over traditional HID high bay systems. The heavy duty housing with integral heat sink is constructed of die cast aluminum with an optimized thermal management design to dissipate heat enerated at the junction of the LED die, which increases the efficiency and L70 life of the LEDs. Long-life LED systems coupled with state-of-the-art Meanwell driver technology deliver optimal performance and system efficiency. The fixture produces brilliant white light (up to 18,600 lumens) with superior glare-free illumination and maximum energy efficiency. The high return on investment makes HB160-150W ideal for warehouse, hangar, gymnasium and industrial facility lighting.
