ETL DLC SAA C-Tick LED High Bay Luminaire for Warehouse Lighting

Click to view original image
Available Wattages: 50W/80W/100W/120W/150W/200W
Luminous Flux: 5500/8800/11000/13200/16500/19800/22000 lm
Light Source: Bridgelux, Epistar, Samsung
Unit Price: Request a quote
Origin: China
Last Updated: 2017-11-15 19:58
Views: 170
Send inquiry
Company Information
Yaorong Technology is an important industry force in the field of high power LED lighting. The company designs and manufactures LED high bay lights, LED street lights, LED flood lights, LED wall packs, LED tunnel lights, LED parking lot lights and... [more]


Product Details
  • Power: 50W/80W/100W/120W/150W/200W
  • Input Voltage: AC 85-265V
  • Power Frequency: 50/60 Hz
  • Luminous Efficacy: 110 lm/W min.
  • Luminous Flux: 5500/8800/11000/13200/16500/19800/22000 lm
  • Color Rendering Index (CRI): ≥70
  • Color Temperature (CCT): 2700-6500K
  • Lumen Maintenance: L70>50,000 hours
  • Beam Angle: 45°, 90°, 120°
  • LED Driver: Mean Well
  • Power Factor: ≥0.98 @ 115VAC
  • Driver Efficiency: 90%
  • Operating Temperature: -40°C ~ +40°C
  • Ingress Protection: IP54
  • Certification: ETL, DLC, TUV-GS, CCC, CE, RoHS
  • Warranty: 5 Years

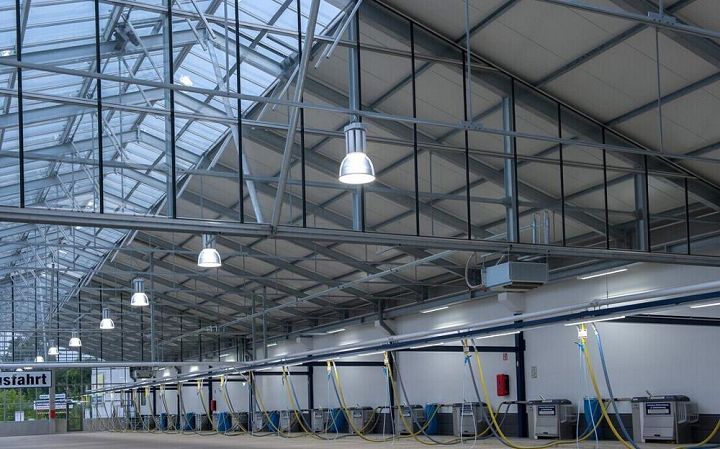

YR-HB220 Series (50W/80W/100W/120W/150W/200W) LED high bay lights from Yaorong Technology are affordable, reliable LED lighting solutions designed to replace up to 600 watt metal halide and high pressure sodium fixtures. Engineered to provide dependable performance and remarkable energy savings in warehouses, manufacturing facilities, gyms, garages, general task areas, and many other industrial, applications, YR-HB220 Series deliver up to 22,000 lumens of high quality light while drawing only 200 watts. A rock solid heat dissipating design in conjunction with OSRAM 3030 SMD LED technology allows the luminaire to last substantially longer than the rated 50,000 hours. The high performance LEDs are mounted to an aluminum heat sink which works with heat pipes to ensure proper thermal management of the system. The combination of thermal conduction and radiation technology will help to sustain maximum light, life and color consistency. A high efficiency Mean Well driver operates within a wide 100-277 VAC range and provides accurate constant current control. YR-HB220 Series utilizes anodized aluminum reflectors to narrow the beam angle to 60 or 90 degrees. Optional PC refractors are available. These lights are ETL, DLC, SAA, C-Tick, CE and RoHS certified to meet U.S. and international safety standards and are qualified for utility rebates, tax credits and energy loan programs in some markets.
