Modular LED Tunnel Lights (30W-240W)

Click to view original image
Power Range: 30W-240W
Light Source: LUXEON Rebel
LED Driver: Mean Well HLG
Unit Price: Request a quote
Origin: China
Last Updated: 2017-11-15 21:04
Views: 217
Send inquiry
Company Information
Yaorong Technology is an important industry force in the field of high power LED lighting. The company designs and manufactures LED high bay lights, LED street lights, LED flood lights, LED wall packs, LED tunnel lights, LED parking lot lights and... [more]

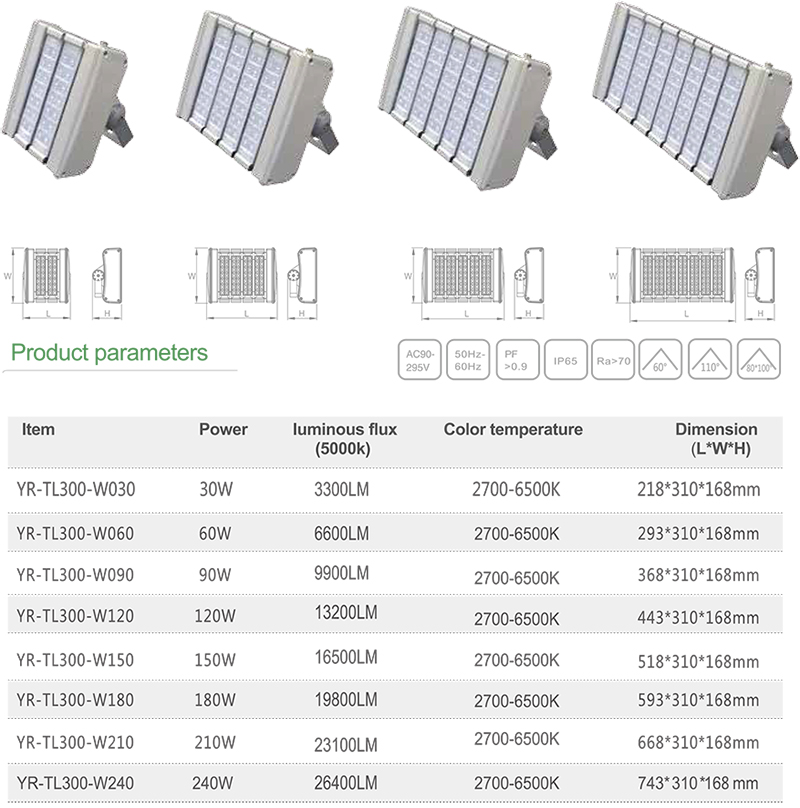

Product Details
  • Power: 30W-240W
  • Input Voltage: AC 90-295V
  • Power Frequency: 50/60 Hz
  • Light Source: LUXEON Rebel
  • Luminous Efficacy: 110 lm/W min.
  • Luminous Flux: 3300 lm - 26400 lm
  • Color Rendering Index (CRI): ≥70
  • Color Temperature (CCT): 2700-6500K
  • Beam Angle: 60°, 110°, 80x100°
  • LED Driver: Mean Well HLG
  • Power Factor: ≥0.90
  • Driver Efficiency: 90%
  • Operating Temperature: -35°C ~ +45°C
  • Ingress Protection: IP65
  • Certification: CE, RoHS
  • Warranty: 5 Years
YR-TL300 Series LED tunnel lights from Yaorong Technology are designed to offer precise symmetrical or asymmetrical photometric distribution for tunnel and underpass lighting. Designed to meet recommended luminance and illuminance requirements set by all national and international standards, YR-TL300 features a modular configuration that provides a complete and scalable wattage from 30W to 240W and light output from 3,300 to 26,400 delivered lumens. This scalability allows flexible combinations of light modules for various application needs. Constructed from die cast aluminum electrostatically sprayed with a polyester powder paint finish, the luminaire housing with integrated heat sink offers superior thermal management through heat dissipation and thermal conduction. The modular light engines utilize LUXEON Rebel LEDs that deliver industry-leading efficacy, lifetime and reliability. Precision designed optics provides optimized photometric performance and light distributions to avoid black-hole and flicker effect in either probeam or counterbeam orientation. The high performance Mean Well constant current driver an unparalleled level of efficiency and reliability with enhanced protection features including overcurrent, short-circuit, overvoltage and over-temperature protections. The optical assembly and driver compartment are hermetically sealed to provide IP65 ingress protection.


YR-TL300-1
