UL DLC Certified High Output Smart LED Area/Shoebox Lights

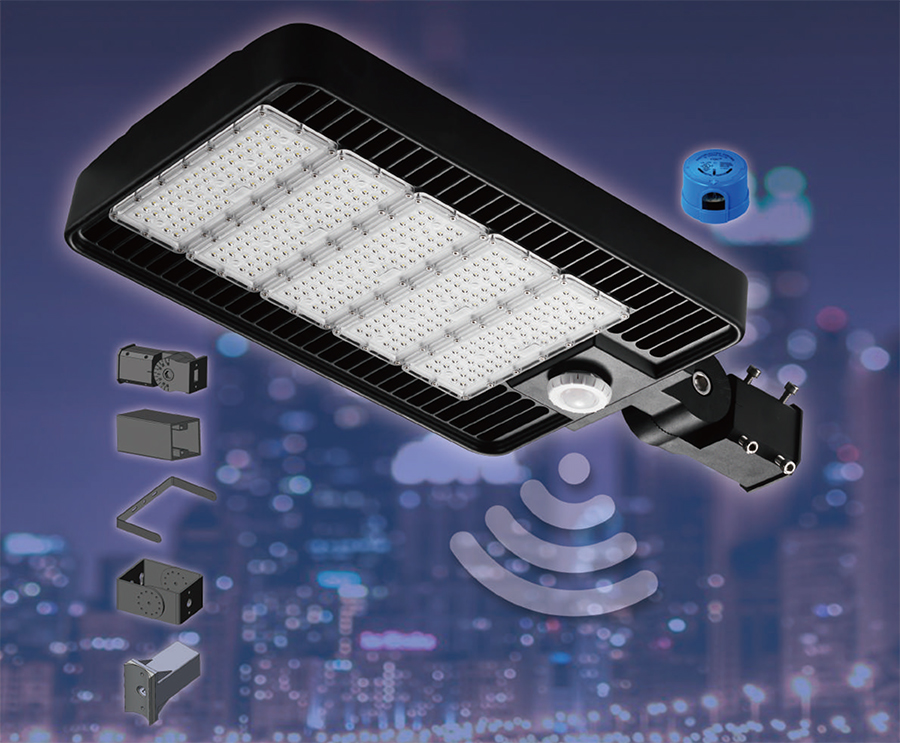

Click to view original image
Available Wattages: 110W/150W/300W
Luminous Flux: 18700/25500/51000 lm
Light Source: Lumileds LUXEON
Unit Price: Request a quote
Origin: China
Last Updated: 2017-11-18 19:22
Views: 118
Send inquiry
Company Information
AOK Lighting develops and manufactures industrial and outdoor lighting fixtures, including LED high bay lights, LED street lights, LED area lights, LED flood lights, LED tunnel lights and LED gas station lights. The company delivers innovative des... [more]


Product Details
  • Power: 110W/150W/300W
  • Input Voltage: 100-277 VAC (347/480 VAC optional)
  • Utility Frequency: 50/60 Hz
  • Light Source: LUXEON
  • Luminous Efficacy: 170 lm/W
  • Luminous Flux: 18700/25500/51000 lm
  • Color Rendering Index (CRI): ≥70 (≥80 optional)
  • Color Temperature (CCT): 3000K/4000K/5000K/5700K/6500K
  • Lumen Maintenance: L70>50,000 hours
  • Light Distribution: Type II, Type III, Type V
  • LED Driver: Mean Well
  • Power Factor: >0.95
  • Total Harmonic Distortion (THD): <15%
  • Dimming: 1-10V/PWM/DALI
  • Lighting Control: Occupancy sensor, Zigbee
  • Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
  • Ingress Protection Rating: IP66
  • Impact Protection Rating: IK08
  • Certification: UL, DLC, FCC, SAA, CE, RoHS
  • Warranty: 5 Years
The AOK iS Series (110W, 150W, 300W) LED shoebox lights are designed to replace up to 1500 watts conventional HID shoeboxes with significant savings on energy and maintenance costs while producing excellent photometric performance. Combining form and function in a rugged, soft square die cast aluminum housing, the AOK iS luminaire provides an aesthetically pleasing addition to area lighting solutions. The luminaire features an integral heat sink with a multitude of vented cooling fins integrated strategically to provide effective and efficient air ventilation and heat dissipation. The modular configuration of the iS Series LED shoebox lights allows power serialization to accommodate different lighting requirements, offering design flexibility and application versatility that is perfect for open settings such as building exteriors, street sides and parking lots. The scalable lighting system provides a complete offer from 100W to 300W with multiple optics choices including Type II, Type III and Type IV light distributions. The patented thermal management design and precision engineered optical system combined with high quality components from top-tier brands (Lumileds LUXEON 3030 LEDs, Inventronics drivers) deliver an exclusive combination of high system efficacy (up to 170 lm/W), excellent illuminance uniformity and lifelong color consistency. AOK iS Series LED luminaires feature flexible lighting controllability via 1-10V, PWM, Dali and Zigbee dimming. The built-in occupancy sensor provides multi-level control based on motion. The photocell module can be integrated to measure the ambient light level for daylight harvesting.
