Linear LED Lighting Fixture, LED Batten 600/900/1200/1500mm

Click to view original image
Unit Price: Request a quote
Term: Ex-works
MOQ: 1000 pcs
Lead Time: 30 days
Origin: China
Last Updated: 2017-11-14 08:08
Views: 139
Send inquiry
Company Information [VIP Member] VIP
Jinghong Lighting designs and manufactures high-performance lighting products for the commercial, industrial and institutional markets. The company has been dedicated to providing the lighting industry with the highest quality, most reliable and c... [more]


Product Details
  • Power: 1-29W,30-49W,50-79W
  • Luminous Efficacy: 3000-3999 lm,4000-4999 lm,5000-6999 lm
  • Input Voltage: 90-305VAC
  • Mount: Surface-mount,Suspended
  • Application: Stand Alone,Scalable Lengths
  • Fixture Length: 600mm (Nominal),900mm (Nominal),1200mm (Nominal),1500mm (Nominal)
  • Lighting Direction: Direct
  • Optics: Diffuser
  • Light Source: Integrated LED
  • CRI: 80 min.
  • Housing Finish: White
  • Features: Seamless Lighting
  • Driver: Constant Current
  • Dimmability: DALI,1-10VAC
  • Certification: CE,RoHS
  • IP Rating: IP50
  • Warranty: 3 Years
The industrial LED linear fixture is the energy efficient solution for both low bay and high bay applications. The industrial fixtures combine architectural form, durability and high performance deliver smooth diffuse light ideal for industrial and commercial applications with the unparalleled energy efficiency, which make it an excellent choice for new construction or retrofit applications. Upgraded internal components, superior built-in Meanwell drivers, high quality SMD2835 LEDs and a thick robust housing, provide high efficiency and long life. Integrated LED light engine eliminates the need for relamping. The color-consistent LEDs are available in color temperatures of 3500k, 4000k and 5000k with a high CRI over 80 for showing true and clear objects under the light. The linear PC lens combines superior comfort with directional light distribution for the most diverse applications including factory areas, warehouses, supermarkets and public buildings. The linear luminaire's length is scalable to form a continuous-row trucking system. Suitable for surface, pendant mounting with optional conduit, stem, cable, chain mounting accessories. DALI and 1-10V dimming options are available. The fixture lengths are available in 600mm, 900mm, 1200mm, 1500mm with input power in 28W, 36W, 45W, 60W respectively.

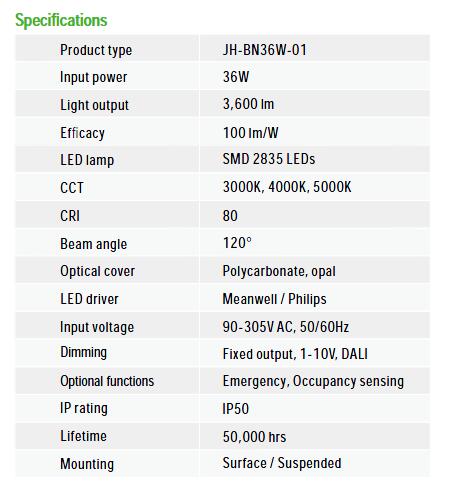

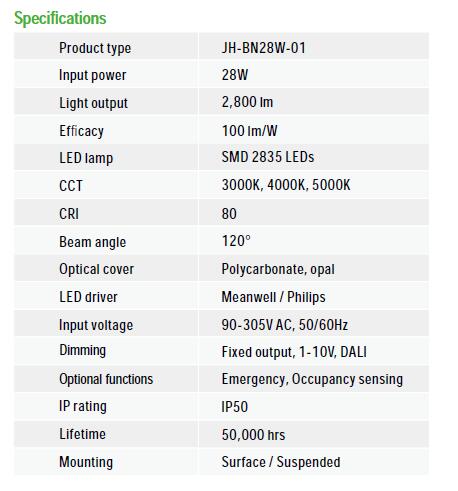

jh-linear-led-lighting-600mm-specs

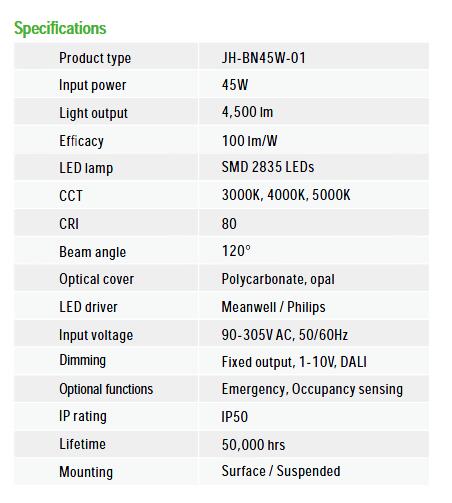

jh-linear-led-lighting-900mm-specs

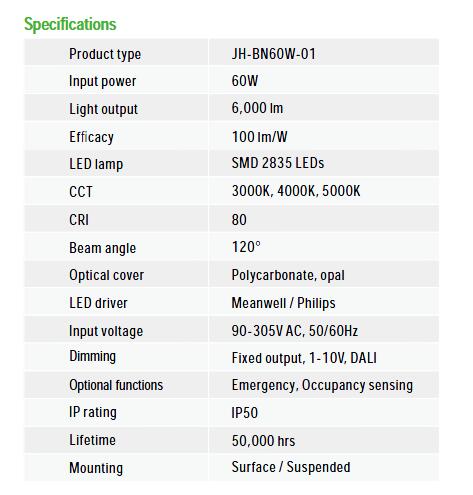

jh-linear-led-lighting-1200mm-specs
jh-linear-led-lighting-1500mm-specs
