LED Canopy Light - 60W 80W 100W 120W

Click to view original image
Unit Price: Request a quote
Term: Ex-works
MOQ: 500 pcs
Lead Time: 30 days
Origin: China
Last Updated: 2017-11-14 00:31
Views: 113
Send inquiry
Company Information [VIP Member] VIP
Jinghong Lighting designs and manufactures high-performance lighting products for the commercial, industrial and institutional markets. The company has been dedicated to providing the lighting industry with the highest quality, most reliable and c... [more]


Product Details
  • Mount: Recessed
  • LED: LED Array
  • LED Brand: Cree
  • Power: 51-80W,81-100W,101-120W
  • Input Voltage: 100-240VAC
  • Luminous Flux: 5000-6999 lm,7000-9999 lm,10000-11999 lm
  • Luminous Efficacy: 90-99 lm/W
  • CRI: 75 min.
  • Driver: Constant Current
  • Dimmability: Non-dimmable
  • Driver Brand: Mean Well
  • Features:
  • Special Application: Gas Station,Damp Location,Wet Location
  • Light Distribution:
  • Certification: CE,RoHS
  • L70 Life:
  • IP Rating: IP65
  • Warranty: 3 Years
Designed to recess in single or double skin canopies, the LED canopy luminaire is designed with industry-leading performance and functionality while delivering superior energy-efficiency and optimum light output in a compact, low-profile, rugged form with easy installation features. This fixture combines a sophisticated LED system with a robust design optimized for performance, functionality and versatility, making it an attractive, energy saving choice where long life, low maintenance, and high lumen output is required. The Cree XLamp LED modules deliver 95 lumens-per-watt light-source efficacy combined with 75+ CRI in all available color temperatures. High-performance, UV stabilized acrylic optics are used to maximize delivered lumens while minimizing glare and achieve precise photometric distributions. The optical assemblies are sealed in place using a silicone gasket for weather tight protection. Luminaire housing is constructed of rugged die cast aluminum with integral heat sink for maximum heat transfer and supreme thermal management to extend product life. Super durable polyester powder coat provides excellent resistance to corrosion, ultraviolet degradation and abrasion. This IP65 dust proof, water proof fixture is typically used in gas stations, convenience stores, banks and pharmacy drive thru canopies, shipping docks or general outdoor areas.

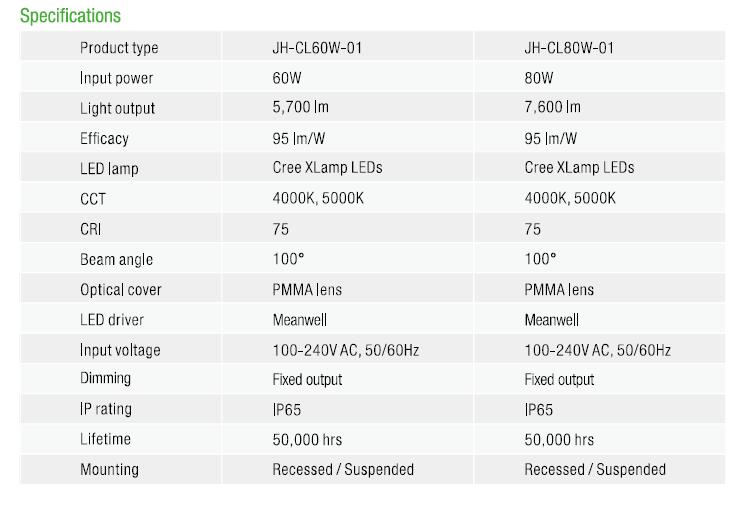

led-canopy-light-jh-specs
led-canopy-light-jh-specs-1
