ETL DLC Listed High Efficacy LED Flood Lights (50W 100W 150W 200W)

Click to view original image
Power Range: 50W/100W/150W/200W
Luminous Efficacy: 140 lm/W
Luminous Flux: 7000/14000/21000/28000 lm
Unit Price: Request a quote
Origin: China
Last Updated: 2017-11-13 23:48
Views: 37
Send inquiry
Company Information
Yaham Optoelectronics is an established manufacturer of LED lights, LED displays and LED traffic signs with vast experience in LED applications and extensive in-house engineering and manufacturing capabilities in LED technology. Over the last 15 y... [more]


Product Details
  • Power: 50W/100W/150W/200W
  • Input Voltage: AC 100~277V
  • Power Frequency: 47-63Hz
  • Light Source: Nichia 3030 LED
  • Luminous Efficacy: 140 lm/W min.
  • Luminous Flux: 7000/14000/21000/28000 lm
  • Color Rendering Index (CRI): ≥75
  • Color Temperature (CCT): 5000K (2000K, 3000K, 4000K, 6000K optional)
  • Lumen Maintenance: L70>100,000 hours
  • Beam Angle: 60*90°
  • LED Driver: Mean Well
  • Power Factor: ≥0.95
  • Power Efficiency: >93%
  • Total Harmonic Distortion (THD): <15%
  • Dimming: 1-10V/PWM
  • Lighting Control: Daylight/motion sensor, DALI control
  • Operating Temperature: -40℃~+55℃
  • Ingress Protection: IP65
  • Certification: ETL, DLC, CE, RoHS
  • Warranty: 5 Years

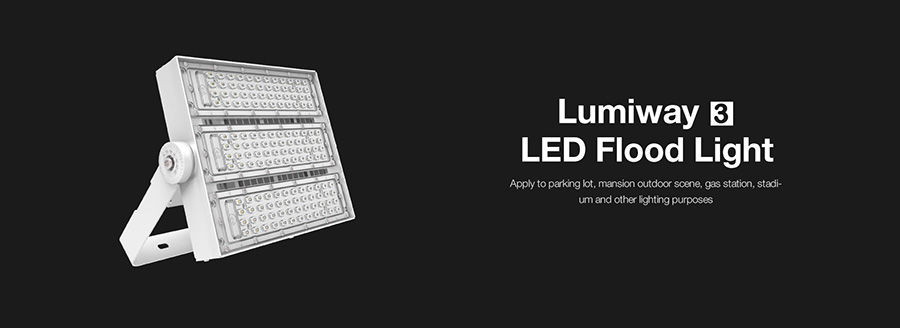

The Yaham Lumiway 3 series LED flood lights provide a complete lighting solution for a diverse range of indoor and outdoor applications including area lighting, facade lighting, security lighting, and billboard lighting. Lumiway 3 LED flood lights incorporate the latest high powered Nichia LED technology into a modular configuration that is scalable to meet customized application requirements. A durable aluminum extrusion provides effective heat dissipation for the LED modules to ensure low LED junction temperature, high delivered lumens over time, and color consistency. The heat and impact resistant, UV stabilized polycarbonate lens with more than 90% light transmittance produces uniform photometric distribution and achieves high optical efficiency. The high-performance Meanwell LED drivers with additional protection schemes work seamlessly with the LED light engine by consistently producing an accurate and regulated current. The IP65 rating and high quality polyester powder coating provide superior weatherability against rust and water penetration and fade resistance against ultraviolet degradation. The swivel bracket mount is constructed of high strength steel. Lumiway 3 LED flood lights are offered in standard 110 lm/W and 140 lm/W efficacy versions, making choices easy between the performance vs. cost trade-offs. Lumiway 3 series is covered by a 5-year limited warranty.
