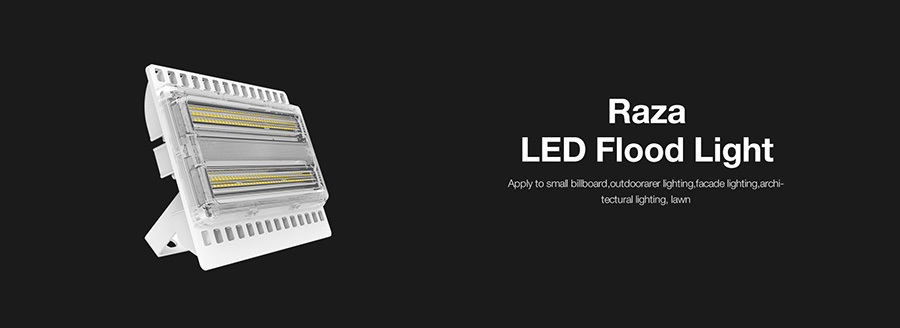

20W 50W LED Flood Lights

Click to view original image
Available Wattages: 20W/50W
Luminous Flux: 2400/6000 lm
Light Source: Nichia LEDs
Unit Price: Request a quote
Origin: China
Last Updated: 2017-11-13 23:31
Views: 75
Send inquiry
Company Information
Yaham Optoelectronics is an established manufacturer of LED lights, LED displays and LED traffic signs with vast experience in LED applications and extensive in-house engineering and manufacturing capabilities in LED technology. Over the last 15 y... [more]


Product Details
  • Power: 20W/50W
  • Input Voltage: AC 100/220/240V
  • Power Frequency: 47-63Hz
  • Luminous Efficacy: 120 lm/W min.
  • Luminous Flux: 2400/6000 lm
  • Color Rendering Index (CRI): ≥75
  • Color Temperature (CCT): 4500~5500K (2500~5500K Optional)
  • Lumen Maintenance: L70>100,000 hours
  • Beam Angle: 40°X90°
  • Power Factor: 0.95 min.
  • Power Efficiency: ≥80%
  • Total Harmonic Distortion (THD): ≤15%
  • Operating Temperature: -40°C ~ +50 °C
  • Ingress Protection: IP65
  • Luminaire Dimensions: L195*W152*H42.5mm
  • Certification: CE, RoHS
  • Warranty: 3 Years
The Yaham Raza series LED flood lights are performance engineered for a wide range of domestic, commercial and industrial applications where reliability and performance are critical. Two linear LED assemblies deliver precise horizontal distribution and uniform illuminance thereby maximizing efficiency and application spacing. Nichia 3030 LEDs produce unmatched quality of high flux density light with an efficacy of 120 lumens per watt. The LEDs are protected by high-transmittance polycarbonate lenses which are sealed in place using high temperature silicone gaskets to provide IP65 ingress protection against water and dust. The high efficiency constant current LED drivers provide high-performance and reliable driver solutions with full compliance to protection and EMC requirements. The cold-forged 1070 high purity aluminum housings with integral deep thermal radiation fins provide heat conductivity efficiency 2.4 times higher than average die-cast housings. Excellent thermal management design translates to an exceptional system reliability with the LED lumen maintenance greater than 70 percent at 100,000 hour.
